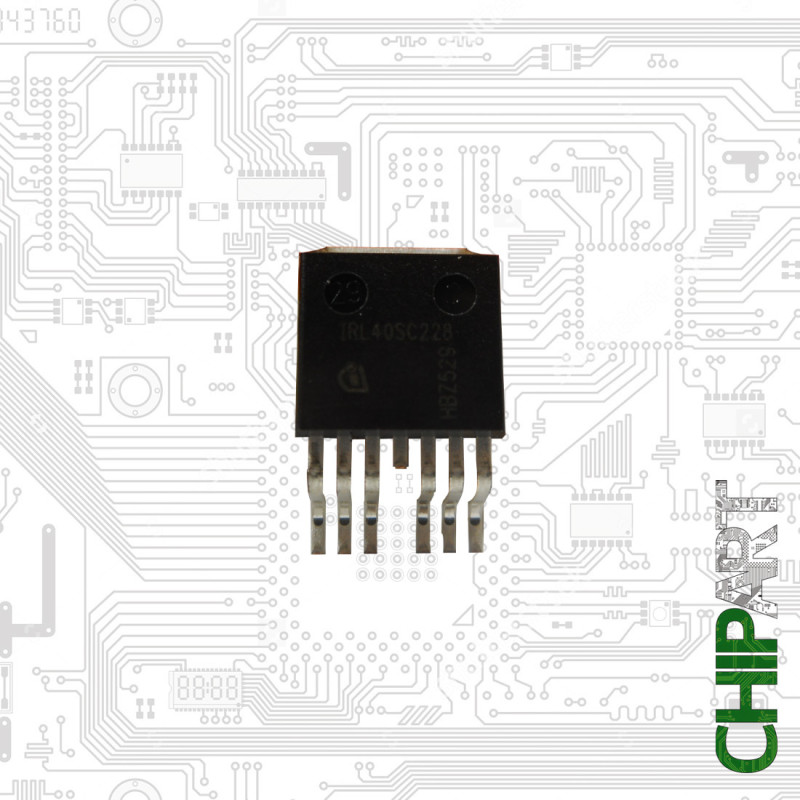

IRL40SC228

Manufacturer:

Infineon

Technology:

Si

Mounting Style:

SMD/SMT

Transistor Polarity:

N-Channel

Number of Channels:

1 Channel

Vds - Drain-Source Breakdown Voltage:

40 V

Id - Continuous Drain Current:

557 A

Rds On - Drain-Source Resistance:

500 uOhms

Vgs - Gate-Source Voltage:

- 20 V, 20 V

Vgs th - Gate-Source Threshold Voltage:

1 V

Qg - Gate Charge:

307 nC

Minimum Operating Temperature:

- 55 C

Maximum Operating Temperature:

+ 175 C

Pd - Power Dissipation:

416 W

Channel Mode:

Enhancement

Packaging:

Reel

Packaging:

Cut Tape

Packaging:

MouseReel

Brand:

Infineon Technologies

Configuration:

Single

Fall Time:

176 ns

Forward Transconductance - Min:

264 S

Product Type:

MOSFETs

Rise Time:

210 ns

Subcategory:

Transistors

Transistor Type:

1 N-Channel

Typical Turn-Off Delay Time:

222 ns

Typical Turn-On Delay Time:

67 ns

Unit Weight:

4,675 g
