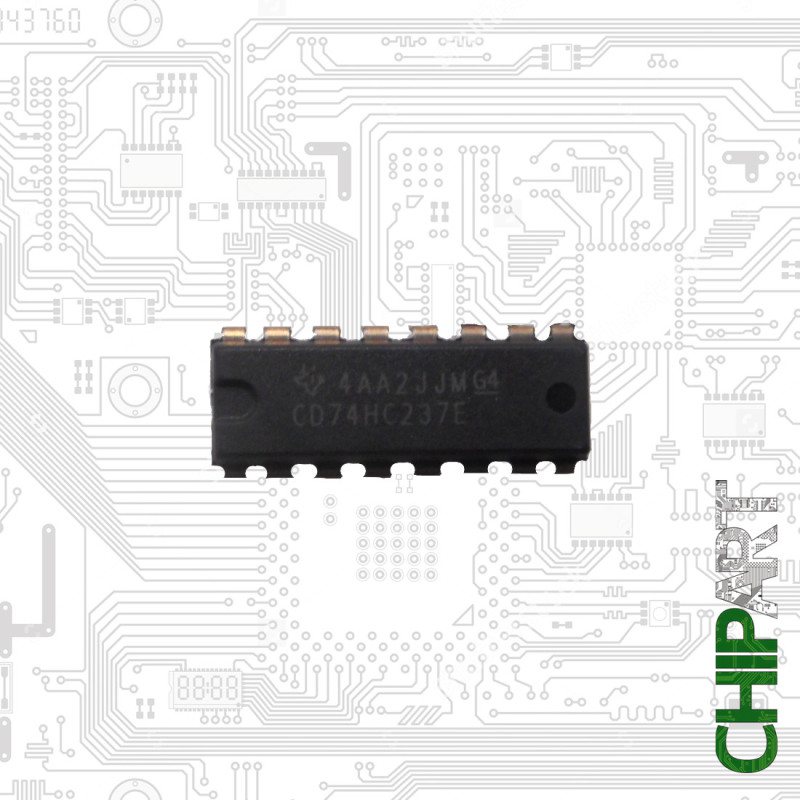

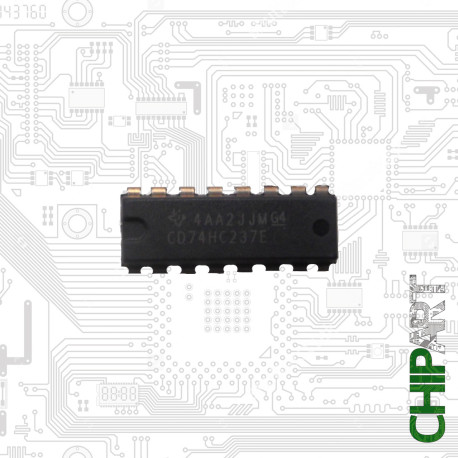

74HC237E

Referência: 0508-028

Condição: Novo produto

CHIPART- CD74HC237E

Manufacturer:	Texas Instruments
Logic Family:	HC
Number of Input Lines:	3 Input
Number of Output Lines:	8 Output
Package/Case:	PDIP-16
Number of Bits:	3 bit
Propagation Delay Time:	36 ns
Supply Voltage - Min:	2 V
Supply Voltage - Max:	6 V
Mounting Style:	Through Hole
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Brand:	Texas Instruments
Function:	3 to 8 HS CMOS
Height:	4.57 mm
High Level Output Current:	- 5.2 mA
Input Voltage:	500 mV to 1.5 V
Length:	19.3 mm
Logic Type:	Decoders/Demultiplexers
Low Level Output Current:	5.2 mA
Maximum Clock Frequency:	28 MHz
Number of Circuits:	2 Circuit
Operating Supply Voltage:	2 V to 6 V
Output Current:	+/- 25 mA
Output Voltage:	2 V to 6 V
Supply Current - Max:	8 uA
Technology:	CMOS
Width:	6.35 mm
Unit Weight:	1 g
